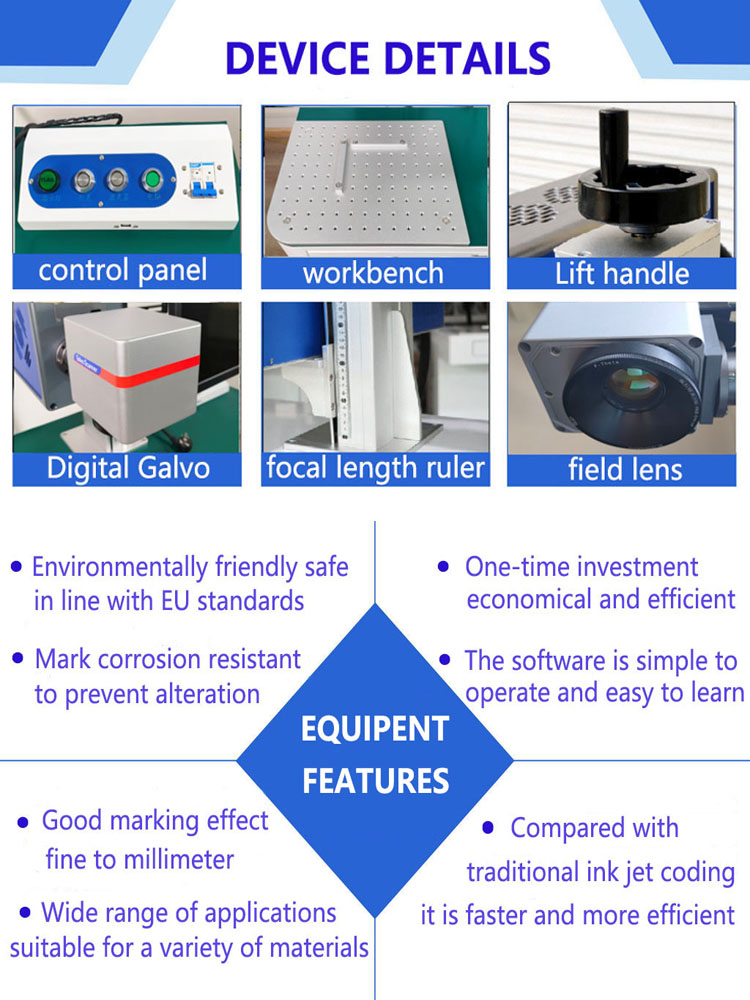

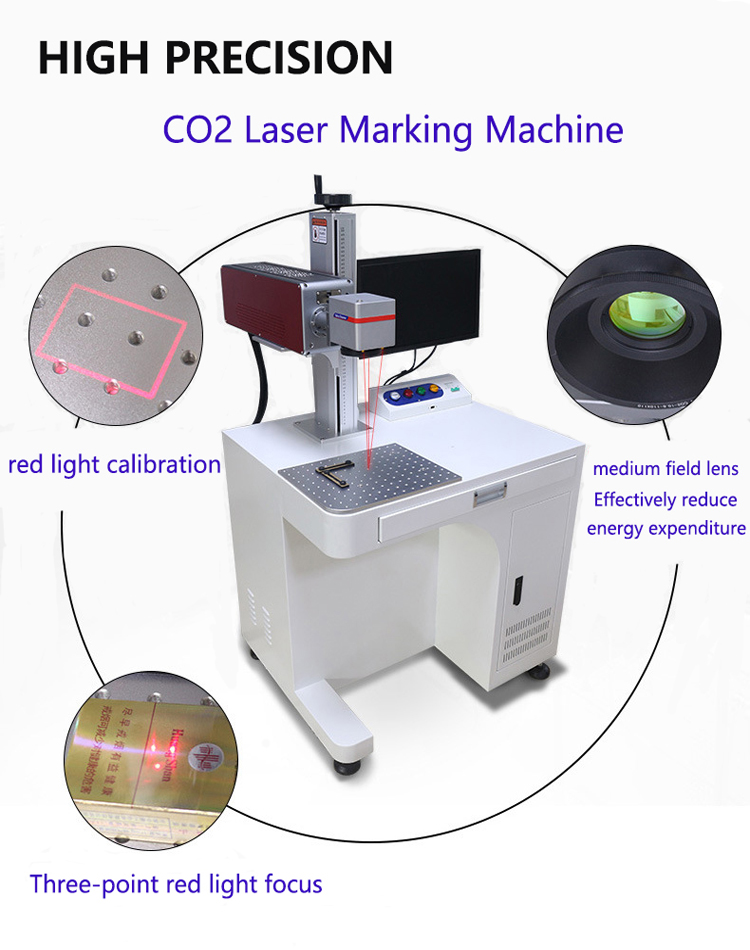

CO2 laser marking machine 40W60W wood rubber plastic laser engraving coding
| CO2 laser marking machine | |
| CO2 laser marking machine, namely carbon dioxide laser marking machine, is a laser galvanometer marking machine that uses CO2 gas as the working medium. Using CO2 radio frequency laser, the laser wavelength is 10.60um, and the life span is as long as 20,000 to 40,000 hours. The marking speed is fast and the lines are fine. Due to its good performance, it can be matched with the production line. General purpose model, rear focus mode, small size and high degree of integration. | |
| Model | YB-CO2 |
| Power | 40W/60W/100W |
| Cooling Mode | Air Cooling |
| Marking Speed | 8000mm/s |
| Laser Source | Synrad/Coherent/Davi/Jingrui |
| Minumum Line Width | 0.015mm |
| Pulse Frequency | 1-25Khz/1-100Khz |
| Minumum Character | 0.2mm |
| Field Lens Brands | Singapore Wavelength |
| Laser Wavelength | 10.60μm |
| Marking Area | 110*110mm / 140*140mm/ 175*175mm/210*210mm/300*300mm |
| Environment | 5℃-45℃, clean or dust-free |
| Control Card | JCZ Brand EZCAD |
| Power Supply | AC220V / 110V plug |
| Operating System | Win XP /7/ 8/ 10 (32 bit, 64bit) |
| Warranty | 1 years |
| CO2 laser marking machine is suitable for marking most non-metallic materials, such as paper packaging, plastic products, label paper, leather cloth, glass ceramics, resin plastic, bamboo and wood products, PCB boards, etc. | |
Packaging Details
1. Standard export wooden cases with sponge filled inside for packing protection.
2. The Wooden case is fumigation free. Suitable both by sea and by air.
3. Express door to door
