| Split portable fiber laser marking machine | |
| Split portable fiber laser marking machine, using Raycus laser, dual red light positioning, genuine gold orange board card. Power 20W/30W/50W/100W is optional, working area 110-300mm is optional.There is installation software in the U disk, and customers can use their own computer to install. The packaged weight is 68 kg, fully functional, compact and portable. | |
| Product parameter | |
| Laser power | 20W/30W/50W/100W |
| Laser wavelength | 1064nm |
| Beam quality | M2<2 |
| Control software | Ezcad |
| Marking depth | ≤0.3mm |
| Cutting depth | ≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut) |
| Marking speed | ≤7000mm/s |
| Minimum line width | 0.01mm |
| Minimum character | 0.5mm |
| Marking Size | 110 * 110mm ( 200mm 300mm optional ) |
| Electric power | <500W |
| Working voltage | 110/220V ± 10%, 50/60HZ |
| Cooling way | Air cooling |
| Ambient operating temperature | 5° C - 40 ° C |
| Supported graphic formats | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| System Operation | Windows XP / W7--32/64bits |
| Life-span of Fiber Laser Module | 100 000hours |
| Communication Interface | USB |
| Machine weight | 60 |

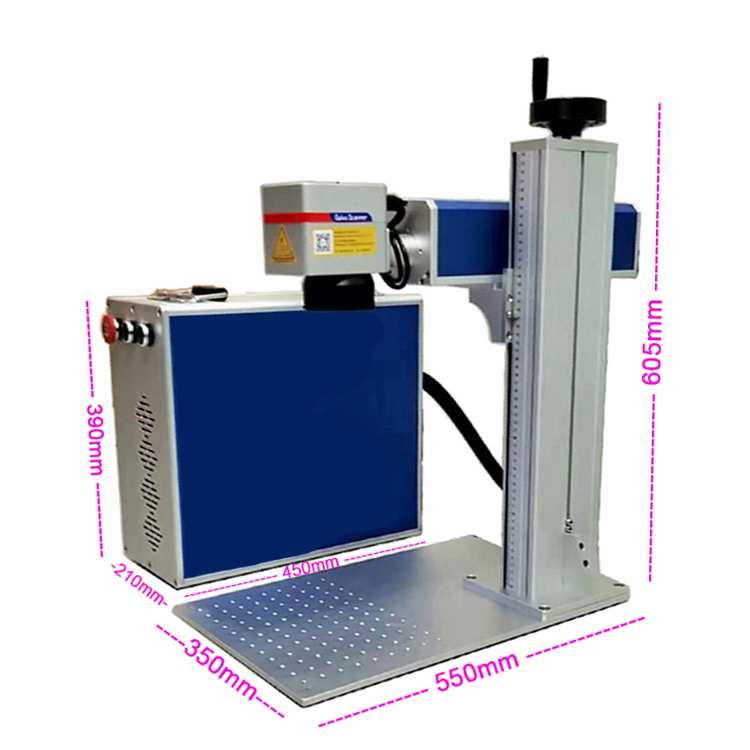

| Machine size | 56L * 55W * 60.5H (cm) |
| Packing | Plywood box |
| Package Size | 85L * 45W * 81H (cm) |

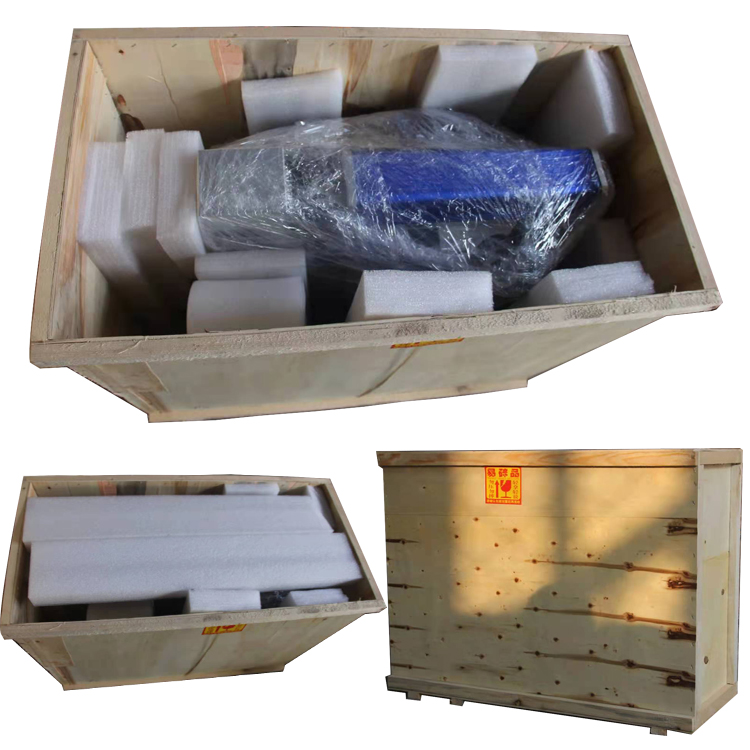

Packaging Details
1. Standard export wooden cases with sponge filled inside for packing protection.
2. The Wooden case is fumigation free. Suitable both by sea and by air.
3. Express door to door
